API

Endpoints

All API endpoints can be found at  https://rissc.demo.printformer.net/docs/

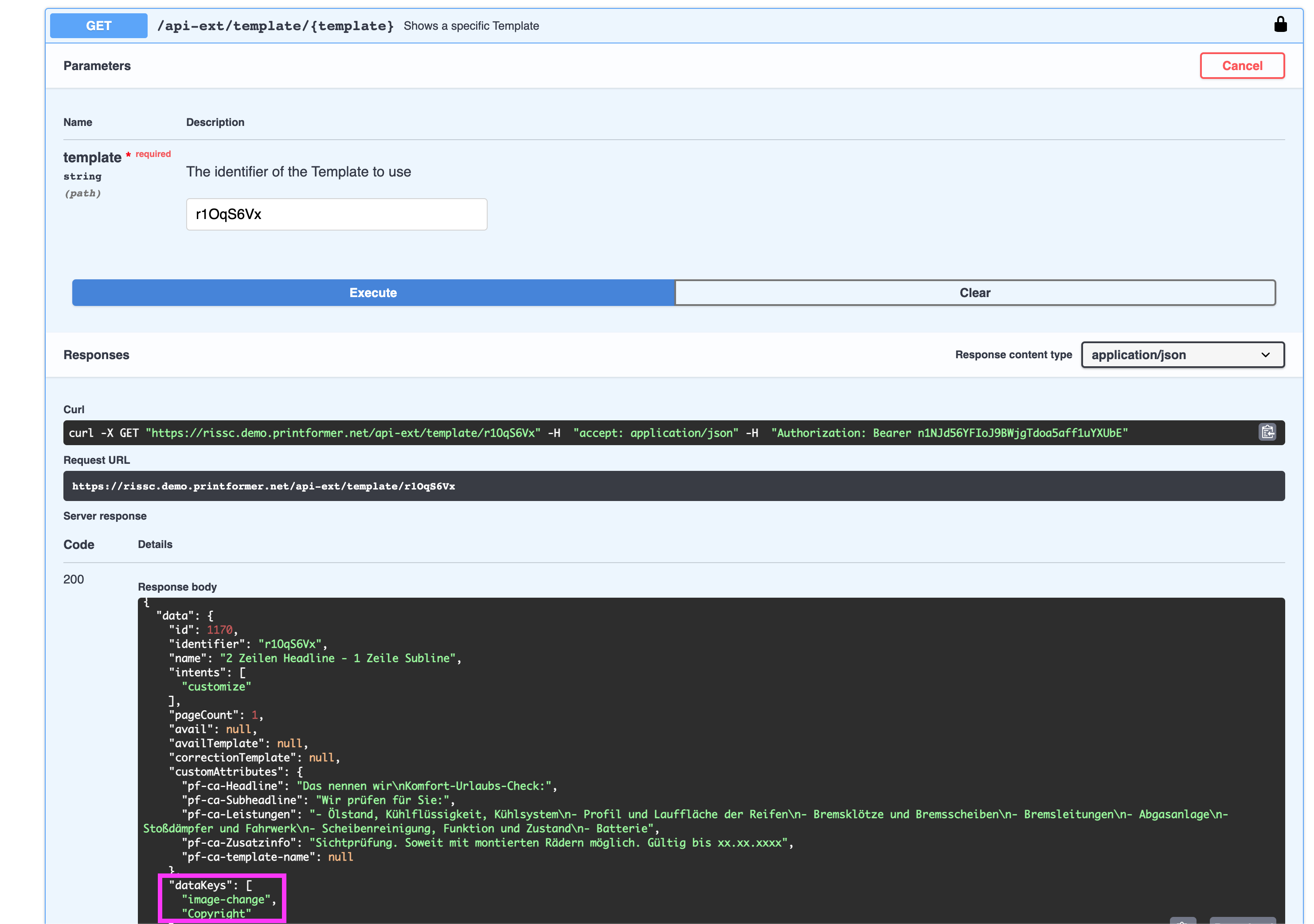

For example, information (such as DataKeys and CustomAttributes) can be read from a printformer template:

Another example of an API call flow:

api-samples.http

Server to server communication

All requests to /api-ext/* must have an  Authorization: Bearer and Accept: application/json header. The Authorization header contains the API key of the client as which the API should be addressed.

Example

CODE
curl -X POST "https://demo.printformer.net/api-ext/user" \
    -H "Accept: application/json" \
    -H "Authorization: Bearer 6d74fe54e5dfc6380928966d9dbda33d"

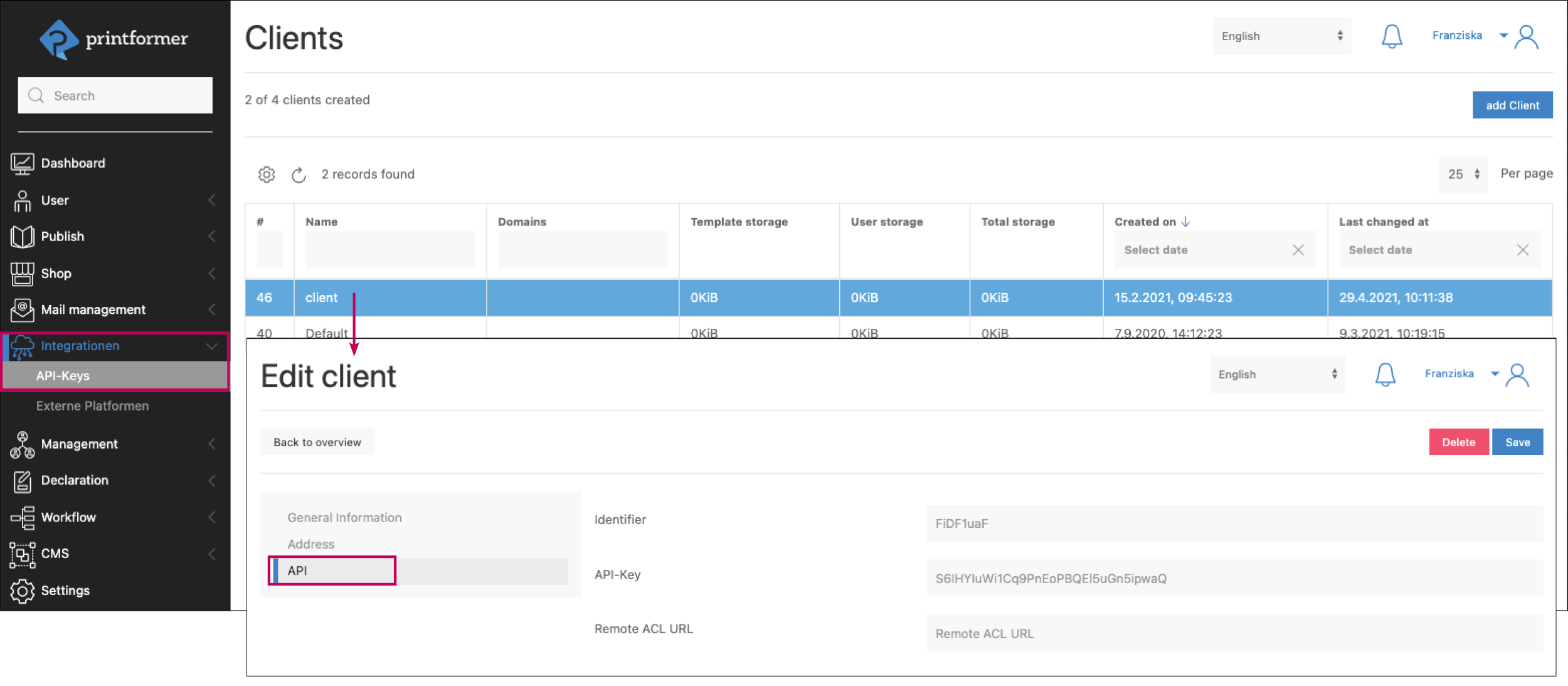

The API key can be found in the printformer Admin menu under Integrations > API Keys in the individual clients (> API).

File recall

For file retrieval using the API endpoints under /api-ext/files/* , the generation of a JWT is necessary.
Through the parametersr jtiexp and urlPath  which can be modified by the external platform, the validity of the file URL can be set appropriately depending on the use case.

The API endpoints do not directly deliver the file, but only a short valid redirect to the actual file URL.

User authentication

To log a user from an external platform into printfomer (e.g. for the editor call) a JWT must be generated.

JSON Web Token

Supported JWT Claims

Claim

Position

Description

Example

Required

Usage

client

Payload

Client Identifier

oU4dL51h

yes

printformer > Integrations > API-Keys
single clients (> API)

user

Payload

User Identifier

oxrboJwf

no

Returned by the API when creating a user.

Required as soon as a user is to be authenticated, e.g. when calling the editor.

urlPath

Payload

URL-Path

/api-ext/files/draft/$draftId/print

no

Validated as soon as the claim is in the token. Should be set e.g. when generating the token for file retrieval to prevent a token from being valid for multiple file retrieval URLs.

redirect

Payload

URL to which the user should be redirected after successful login

https://demo.printformer.net/editor/$draftId/edit

no

Must be generated from the external platform

jti

Header

Nonce, must not be used twice, must be generated again for each JWT

K1jKpIZSiS08TtX3XixI6dPZ91jBVS23tp8z2uiA7RjQxcBk0pCwC9d6FrU2

no

Required as soon as a user is to be authenticated, e.g. when calling the editor.

exp

Payload

Expiration Date (Timestamp UTC) how long this JWT is valid for

1511430662

no

Validated as soon as the claim is in the token.

The JWT is signed with a Sha256 (the API key of the client is used again as the key).

In the browser https://demo.printformer.net/auth?jwt={JWT} is then called.

Instruction: User attachment to editor call

printformer-api-example (PHP)

Step

API-Reference

Required

Results

Beschreibung

1

https://rissc.demo.printformer.net/docs/#/User/post_api_ext_user

  • Client API-Key

User Identifier

First, a new user is created.

The new user is automatically assigned to the client that created it.

2

https://rissc.demo.printformer.net/docs/#/Draft/post_api_ext_draft

  • Client API-Keyl

  • User Identifier

  • Master Id

DraftHash

A new draft is created for the newly created user.

3

https://rissc.demo.printformer.net/docs/#/User/post_api_ext_user

  • Mandanten API-Schlüssel

  • Mandanten Identifier

  • User Identifier

  • DraftHash

JWT

The External Platform must generate a JWT

4

  • JWT

Editor-Aufruf

With this JWT the user can be logged in once
